Graftless treatment solution — avoids complex bone-grafting procedures
i-Fix Zygomatic implant system
ZE Series
Also known as i-Fix Zygon. A graftless zygomatic implant system with lengths from 30 to 62.5 mm and a 55° angulated head for immediate-function, fixed-provisional treatment of the atrophic maxilla.
Zygomatic implant system
ZE Series
A graftless zygomatic implant system with lengths from 30 to 62.5 mm and a 55° angulated head for immediate-function, fixed-provisional treatment of the atrophic maxilla.
ConnectionM1.6 internal connection with external hex 2.25 A/F
MaterialASTM F136 ELI Grade 5 titanium alloy
SurfaceNano Bio Activated surface (Sweden)
Grade V ELI titanium alloy: minimum 860 MPa tensile strength, 10% elongation, ≤0.13% oxygen content.
03 Indicated for
Where ZE Series
is the right choice.
Clinical cases this series is specifically designed for — sourced from Kamal Medtech's own published product documentation.
- Atrophic or graft-deficient maxilla
- Cases avoiding bone-grafting procedures
- Immediate fixed provisional via multicortical anchorage
04 Size portfolio
Diameter × length matrix
with catalog codes.
Every combination the catalog actually manufactures, with its article code. Select any code to copy it — rows are diameters, columns are lengths in millimetres.
| Ø (mm) | 30 | 35 | 40 | 42.5 | 45 | 47.5 | 50 | 52.5 | 55 | 57.5 | 60 | 62.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø 4.6 |
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). The implant is co-packed with its cover screw.
05 Restorative workflow
Prosthetic components
for ZE Series.
Component families available for this series, with catalog article codes — click any code to copy it.
Zygomatic multi-unit Dedicated multi-unit components for the 2.25 A/F external-hex zygomatic connection. +
| Straight multi-unit — 1 mm | |
| Straight multi-unit — 2 mm | |
| 17° angled multi-unit — 3 mm | |
| 25° angled multi-unit — 3 mm | |
| Healing cap multi-unit | |
| Open tray impression coping multi-unit | |
| Temporary coping multi-unit | |
| Abutment analog multi-unit | |
| Prosthetic screw (M1.4 mm) multi-unit | |
| Abutment screw (M1.6 mm) angled multi-unit | |
| Castable sleeve plastic multi-unit |
06 Engineering highlights
What makes
ZE Series what it is.
Design features taken directly from the current product catalog — not marketing paraphrase.
Implants anchor in the zygomatic bone
High primary stability for immediate function — patients receive a fixed provisional prosthesis immediately after surgery
Multicortical anchorage with the proven apex design for high primary stability
Greater surgical and prosthetic flexibility — lengths from 30 mm to 62.5 mm with 55° angulation, all with an external hex connection
07 Kit & documentation

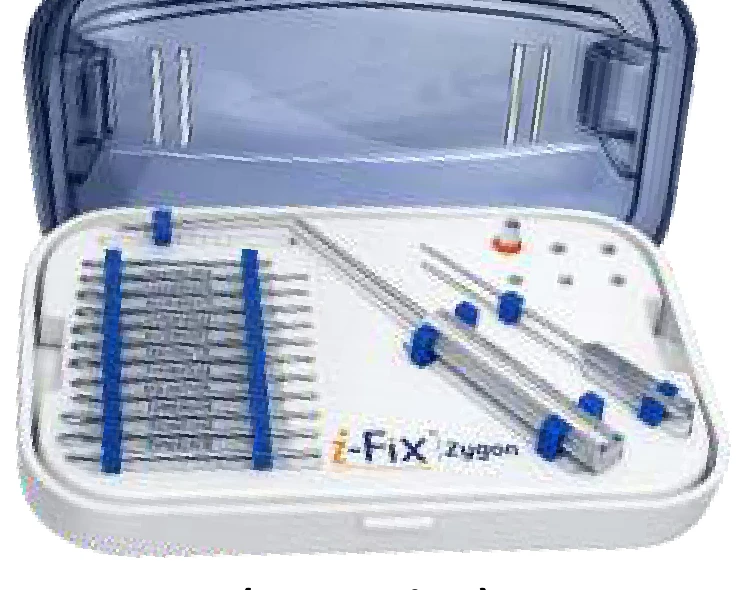

Surgical kit,
catalog and IFU.
Always verify the current catalog, IFU, indications and compatibility before clinical use.
.webp)
09 Frequently asked
Before you order
ZE Series.
1 diameter option and 12 lengths, shown in the Size portfolio matrix above with each combination's catalog article code.
Both are in the Kit & Documentation section above, with the catalog and IFU linked directly.
The Restorative workflow section above lists every component family with its catalog article code — multi-unit, single-unit, overdenture, healing/impression and digital workflow components.
Yes — linked directly in the Kit & Documentation section above.
Need more detail on the ZE Series?
Technical, documentation and pricing enquiries reach the manufacturing team directly.
